The Prepper14
Magnator.

The innovative solution for optimum antenna performance: with its rugged stainless-steel plate and six neodymium magnets, the hand-built Prepper14 Magnator provides an almost fixed-mount connection and exceptional RF coupling — perfect for demanding antennas and a wide range of radio applications.

Enquire by email Field reports
Prepper 14 Magnator — wordmark with skull
Perfect RF coupling, maximum performance

The revolution in
antenna mounting

/ 01

Many people react with amusement when they see the Prepper14 Magnator for the first time. Lines like “Are you planning to drive 400 km/h?” or “You could lift your car with that thing” are just two examples. Sounds funny — but technically it is complete nonsense.

The advantage of the Prepper14 Magnator is simple: you get very, very close to a fixed installation.

The large stainless-steel plate and its six strong neodymium magnets are galvanically bonded. This combination — paired with the large 2 mm plate surface and six strong magnets sitting as close as possible above the car roof — creates a very high capacitive coupling to the vehicle in RF terms.

That is why the Prepper14 Magnator is not only extremely well suited to large antennas such as the Kick-Ass Predator or other antennas that prefer a large ground plane — it is also interesting for the amateur radio world: it enables strong RF coupling that even allows operation with suitable antennas on the long-wave shortwave bands such as 80 metres. That is exactly where ordinary small or even triple magnetic mounts run into insurmountable problems.

The Prepper14 Magnator is built by hand. Its size does come with one caveat: the roof surface should be as flat as possible — curved car roofs cause problems for the magnets' seating. On a VW bus, an SUV or an estate car there are usually no problems at all.

Interested? Just send an email to cbdxclub@gmail.com. 73!

Prepper14 Magnator with mounted antenna on a car roof
6Neodymium magnets
2 mmStainless-steel plate
CB & HAMcompatible
100 %Hand-built
Small but mighty

The new Prepper14
Mini-Magnator

/ 02

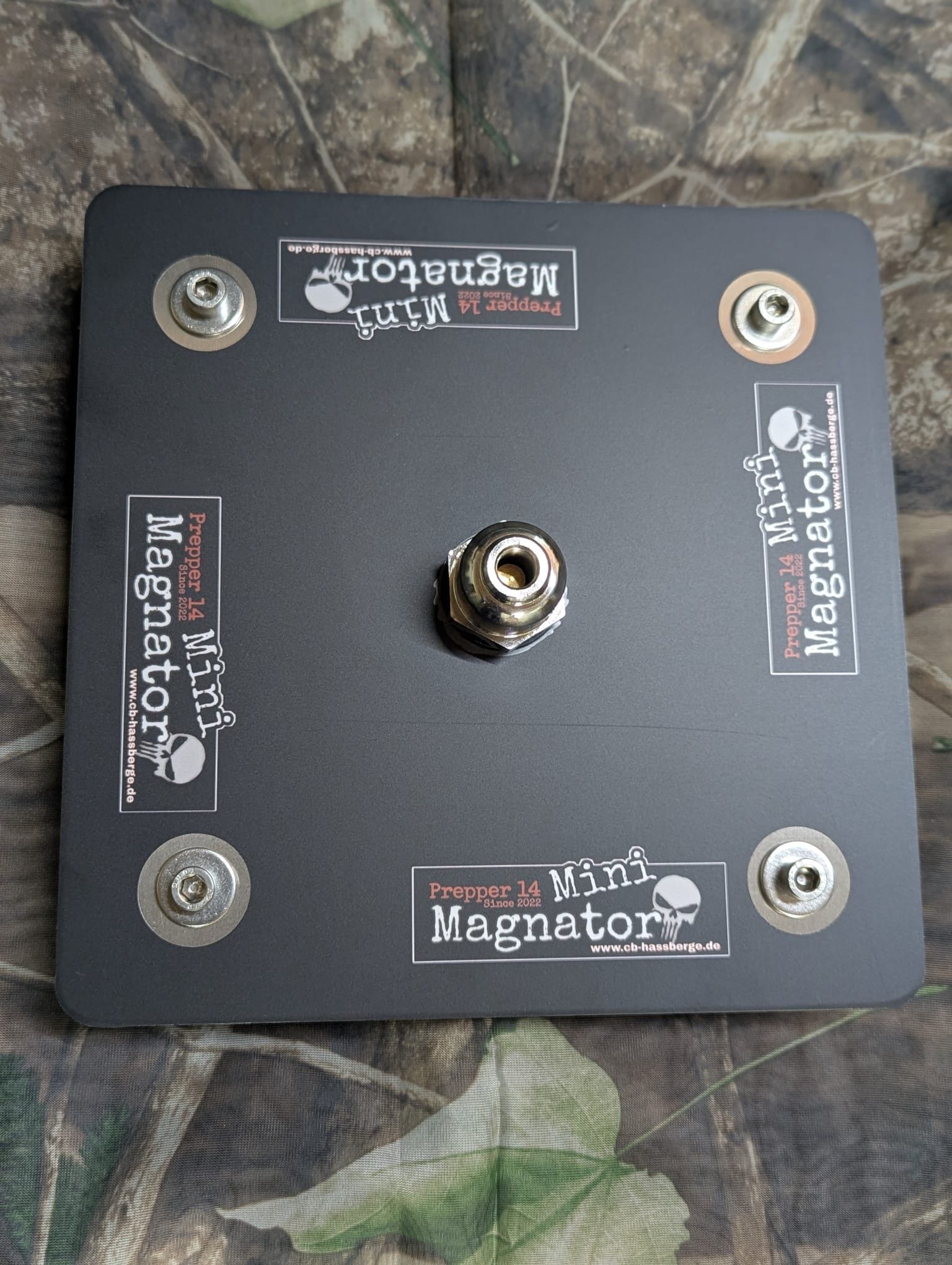

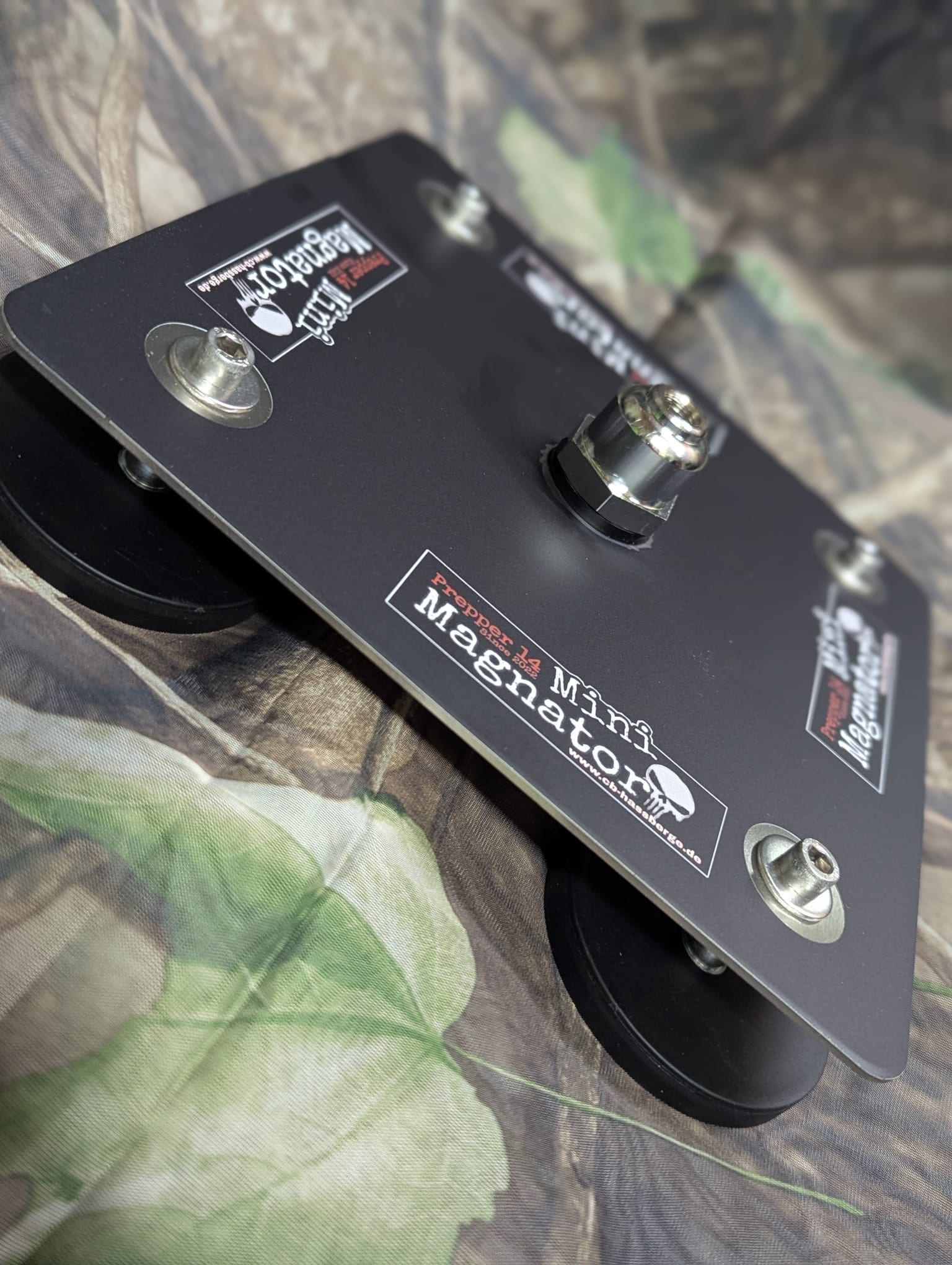

The time has come: the Prepper14 Mini-Magnator, a quadruple magnetic mount, has seen the light of the radio world. After a few setbacks, the smallest possible quadruple magnetic mount has been created — one that still holds a major advantage over ordinary and triple magnetic mounts.

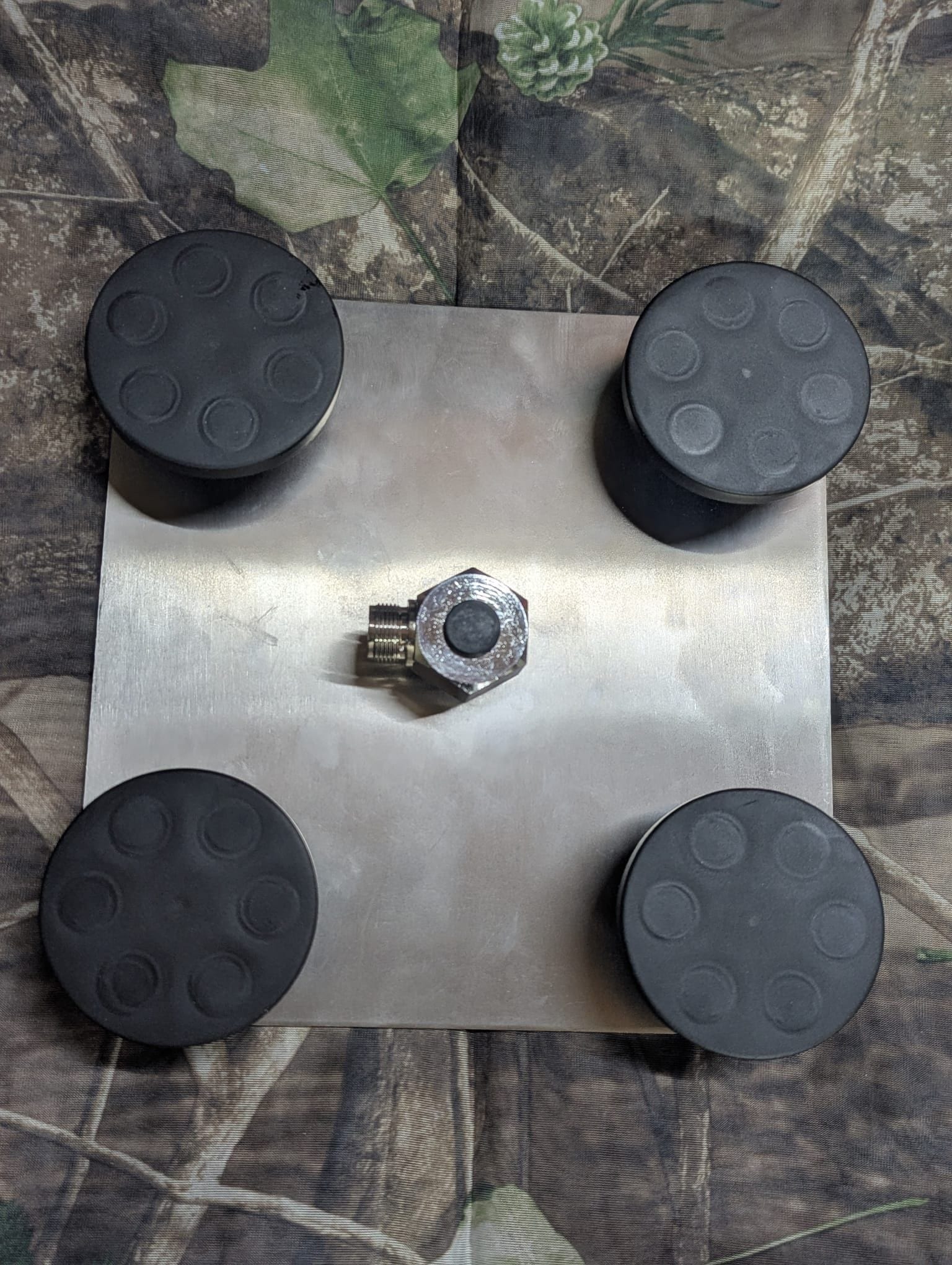

Thanks to the 2 mm stainless-steel plate and its four neodymium magnets — galvanically bonded and sitting as close as possible above the car's sheet-metal roof — a large capacitive coupling with the vehicle is achieved. This coupling makes it possible to run large antennas on CB that need a lot of ground plane: a Kick-Ass Predator, Lemm Vortex PL and the like are no problem and deliver an excellent SWR.

The Mini-Magnator is designed to be not much bigger than a triple magnetic mount while achieving a higher capacitive coupling with the vehicle. And it, too, is hand-built in Germany!

Interested? Just send an email to cbdxclub@gmail.com. 73!

Three variants of the Mini-Magnator: camouflage, white and grey
Prepper 14 Mini-Magnator — wordmark
From the radio press

Tested in Ham Radio Ireland magazine

The Mini-Magnator was reviewed in depth in the August 2025 issue of Ham Radio Ireland magazine by Steve Wright (EI5DD) — with antennas from the 2-metre band up to 7-ft whips. His verdict: high capacitive coupling and a noticeable improvement over traditional magnetic mounts.

You can find every issue of the magazine in our media archive.

Magazine page: The Mini Magnator Mobile Antenna Mount — Ham Radio Ireland, August 2025
Reports from the field

What others say
about the Magnator

/ 04

The Magnator and the Mini-Magnator convince with maximum RF coupling, stability and outstanding performance — ideal for demanding CB radio applications. Three reports from the field:

Mike RomeoReport / 01

I drive a VW Caddy — a roof with recesses, so not good conditions for a magnetic mount. Uwe (Prepper14) pointed me to the Mini-Magnator. And what can I say? I was instantly thrilled: it fitted right into the middle of my roof, and the feel and workmanship are really excellent.

What I really like is that you can attach your own PL cable instead of being limited to the usual 4–5 m. I have managed to tune antennas that gave me real trouble on other mounts — among them a Moonraker Ampro 80 for the 80-metre band. Even so, I was able to bring it down to an SWR below 1:1.5. A very good result!

Mini-Magnator with antenna on a yellow car roof, the Hassberge panorama in the background

73 and stay healthy — your Mike Romeo (Markus)

KiloCharlie20Report / 02

For hilltop operation I like to use our Citroën Jumper. Its roof is very uneven, so I needed something suitable — a fixed installation is not an option for me. The Mini-Magnator fits perfectly onto the area intended for a roof hatch and leaves enough clearance so the roof does not get damaged.

Being able to use my own PL cable had me sold straight away — I like running H-155. On the hill I mostly use the Sirio Performer 5000, almost 2 m tall: at speeds of 150 km/h the Mini-Magnator remained completely unimpressed. Both of my antennas tuned to a good SWR without any problems.

Mini-Magnator on the roof of KiloCharlie20's Citroën Jumper Mini-Magnator seen from the side: the magnets keep clearance from the car roof

55 + 73 — your KiloCharlie20 (Martin)

Marten13EC39Report / 03

I had already optimised my home-made 3-point magnetic mount with a larger stainless-steel plate — but I wanted more. With the Mini-Magnator I immediately noticed a better SWR reading, and the usable bandwidth of my Sirio 5000 Performer increased significantly.

Update: I achieved an SWR of 1:1.6 and below between 26 and 28 MHz. This mount suddenly turned my Sirio 5000 Performer into what the manufacturer had specified — without drilling a hole in my roof. The antenna is now usable across more than 2 MHz. This mount is a game changer; I can only recommend trying it.

Mini-Magnator with antenna on Marten13EC39's car roof Sirio 5000 Performer mounted on Marten13EC39's Mini-Magnator

Report by Marten13EC39

Enquire by email now
